This design wasn’t thrown together — it was engineered.

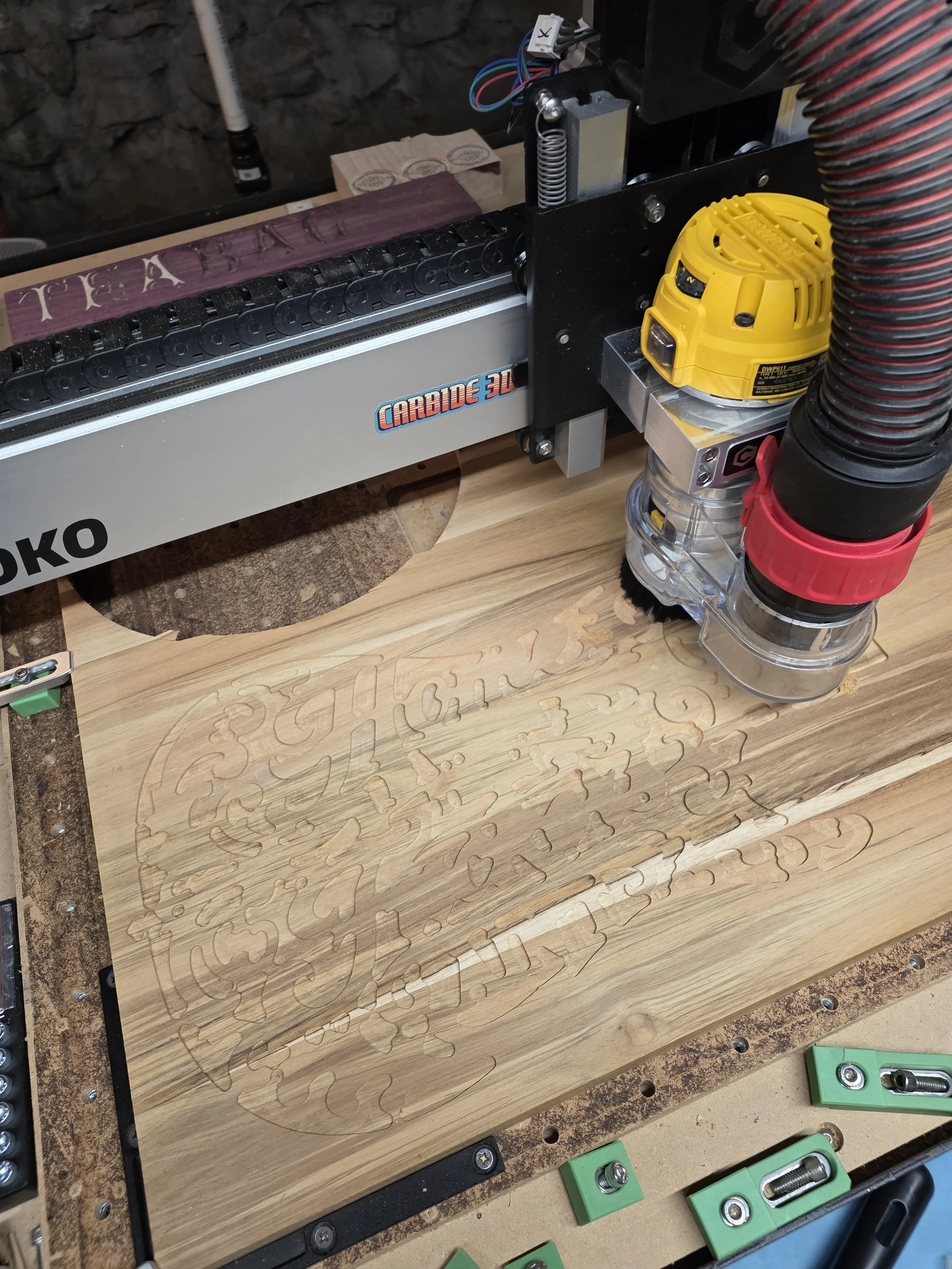

Built specifically for CNC carving, this serving board layout combines aggressive script typography with balanced ornamental flow, giving you a high-impact finished piece without fighting your toolpaths.
Every curve, taper, and spacing decision was made with V-carving performance and readability in mind.
Clean vector geometry → no garbage nodes, no cleanup required

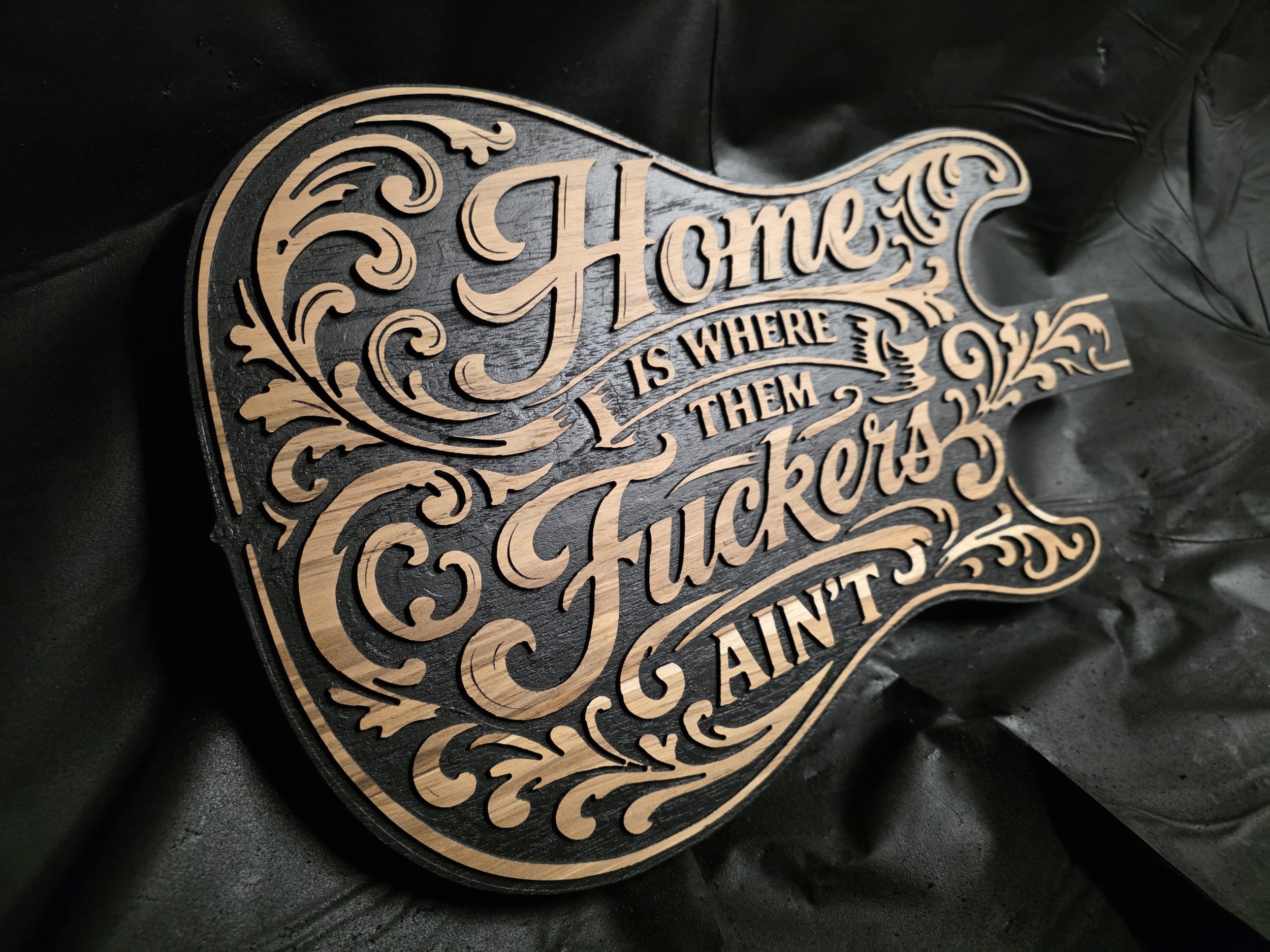

Designed for crisp V-carve lettering and smooth contouring
Balanced composition that actually fills the board correctly
Works at multiple sizes without falling apart

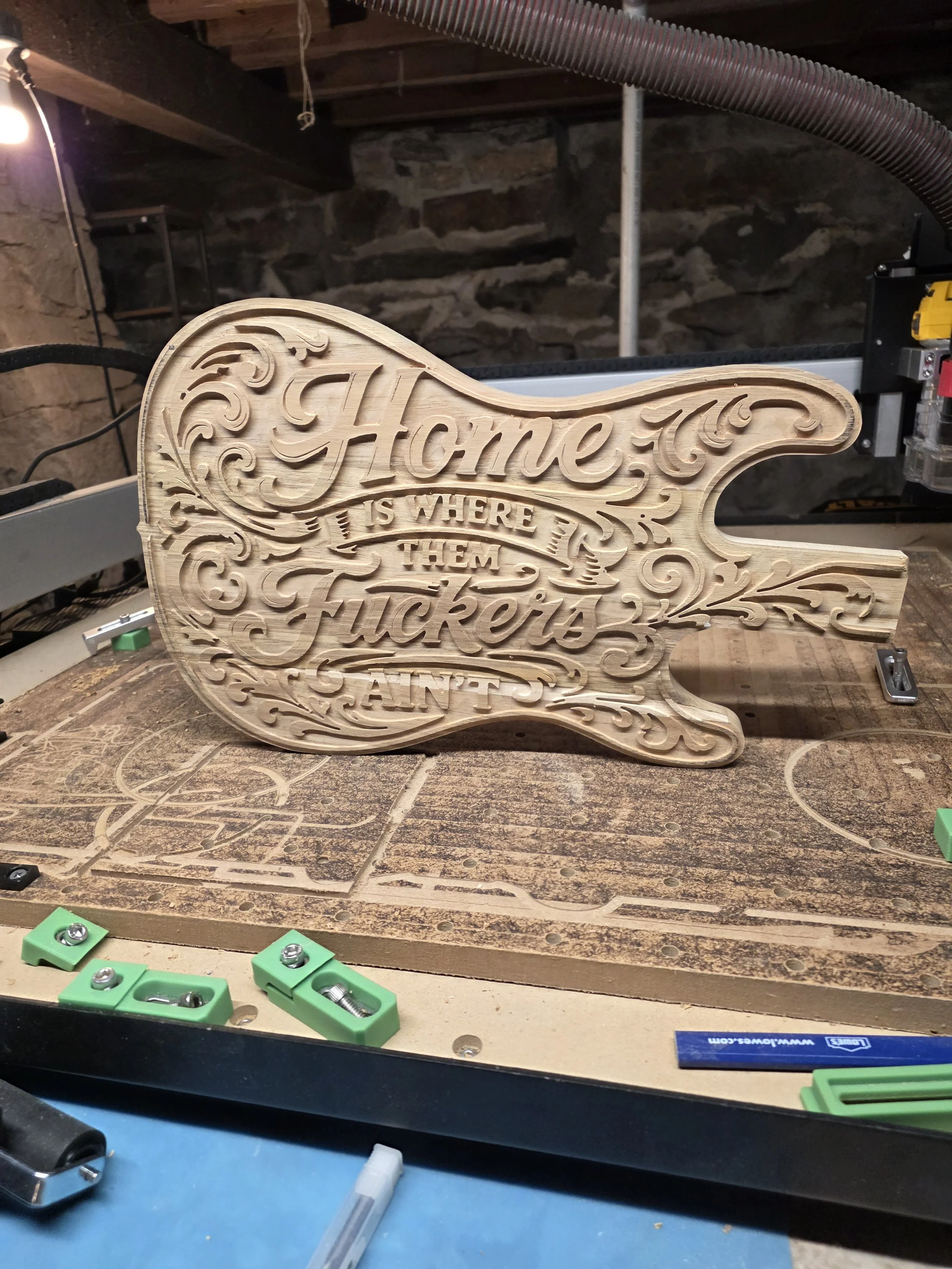

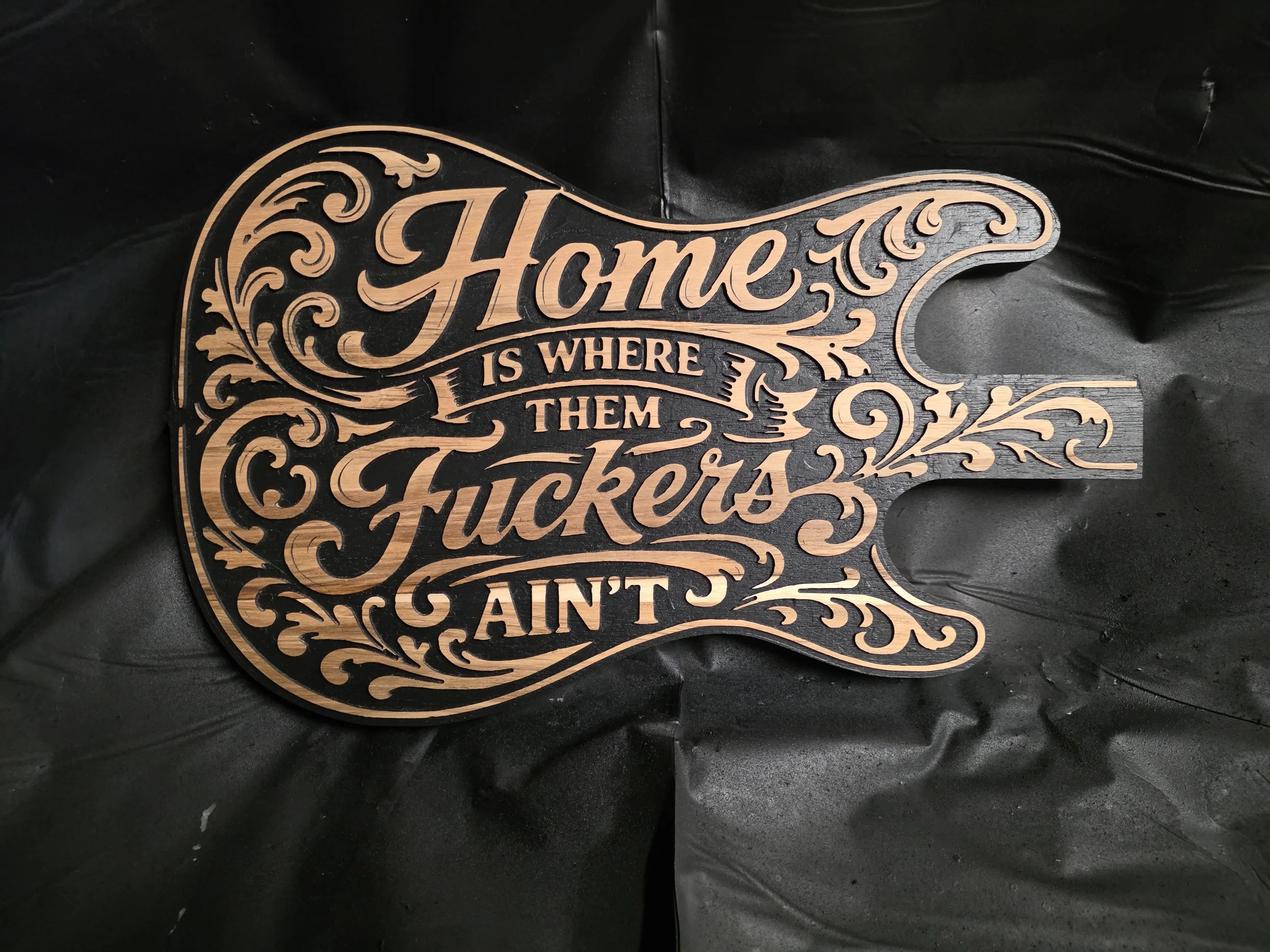

This is the exact file used to produce the finished piece shown — what you see is what you can make.
SVG file (universal compatibility)
DXF file (CAM-ready)
C2D file (Carbide Create ready to run)
High-resolution preview image
Shapeoko (Carbide Create)
X-Carve (Easel / Fusion / VCarve)
Onefinity
Any CNC capable of V-carving and 2D contouring
Bit: 60° or 90° V-bit (lettering)
Optional: 1/8" or 1/4" endmill (clearing)
Material: Hardwood (walnut, maple, oak)
Size: Optimized around ~18–24” width (scales cleanly)
Digital download only — no physical product
You may use this file for personal or commercial projects
You may NOT resell or redistribute the file itself

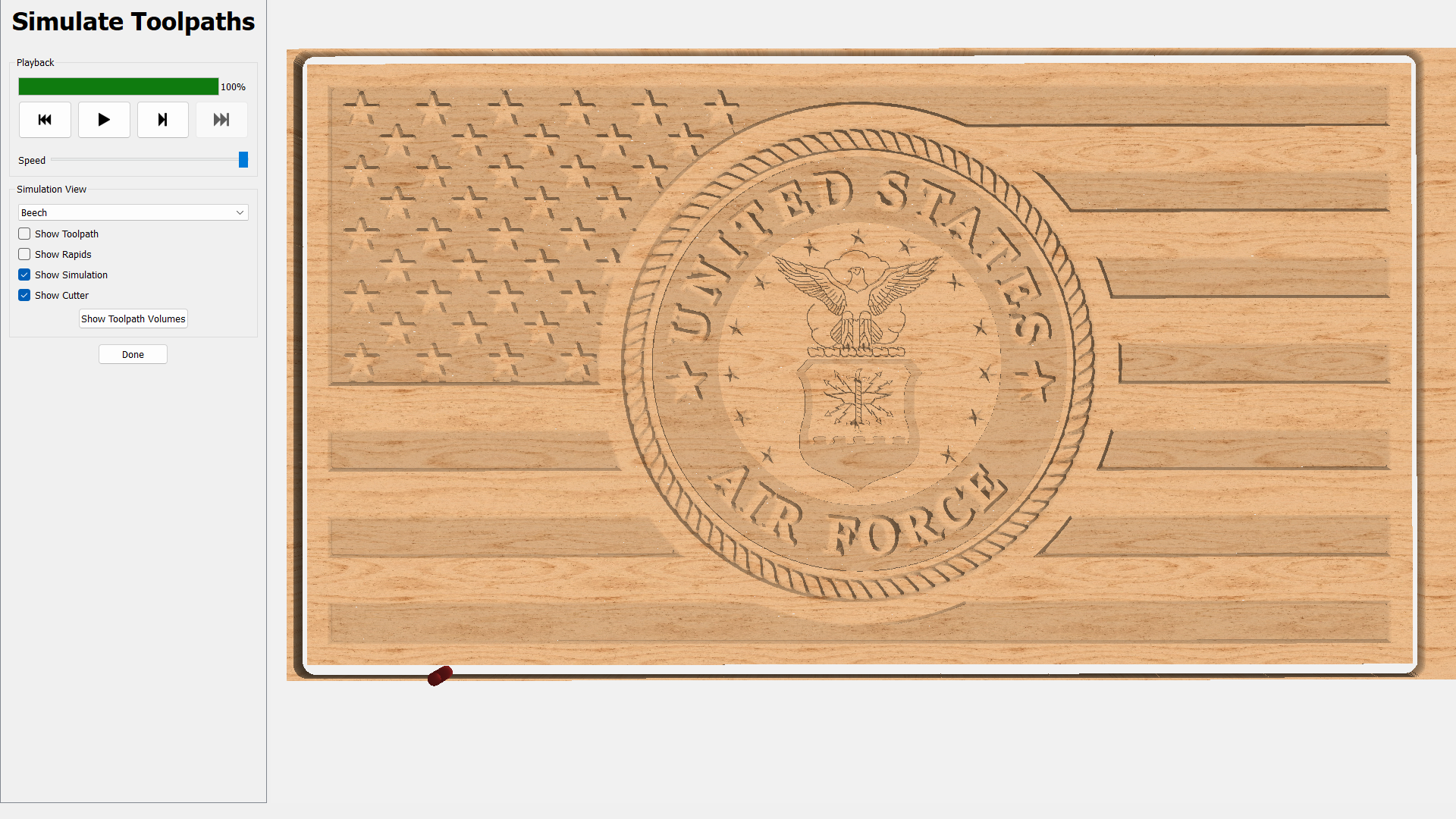

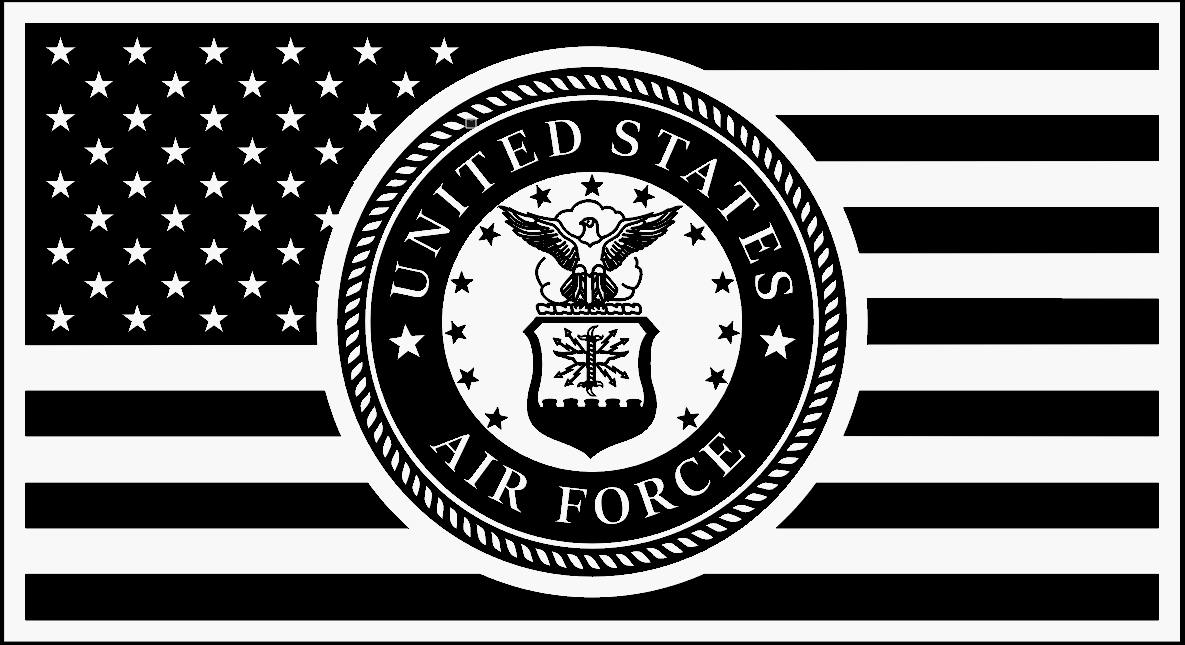

Create a bold patriotic carving with this U.S. Air Force flag CNC file, designed for machining a detailed American flag featuring the official United States Air Force seal.
This design was engineered specifically for CNC routers such as Shapeoko, X-Carve, Onefinity, and other GRBL-based machines, making it ideal for patriotic wall art, military gifts, shop décor, and custom woodworking projects.
The recessed flag fields are carved with tapered pocket walls to create stronger visual depth and cleaner edges, while the lettering and emblem details are machined with a combination of V-bits and precision endmills for crisp detail and strong contrast when carved in hardwood.

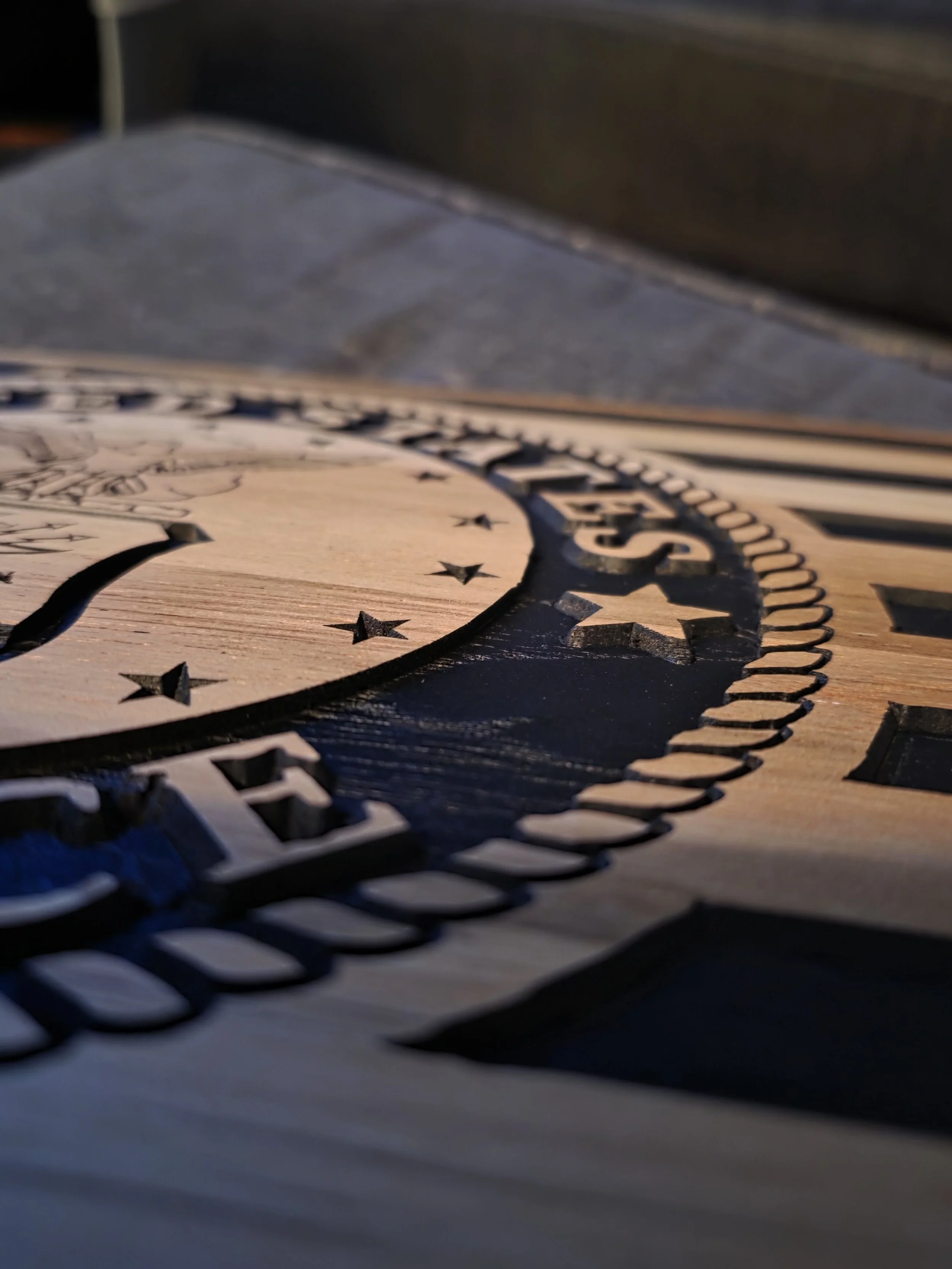

The photos in this listing show a real carved example produced from this design, demonstrating the depth and detail achievable when machined in hardwood on a CNC router.
The layered carving approach produces a striking dimensional effect where the Air Force seal and lettering stand proud against recessed flag elements, creating a bold centerpiece suitable for offices, workshops, or patriotic home décor.
This design works with most hobby and professional CNC routers, including:
• Shapeoko
• Shapeoko Pro
• X-Carve
• Onefinity
• Other GRBL-based CNC machines
Because the project includes both vector formats and a Carbide Create file, it can easily be adapted to other CAM software if desired.
The included Carbide Create (.c2d) project file is configured for machining with the following tooling:
• 1/4" Upcut Endmill – primary pocket clearing
• 1/8" Upcut Endmill – secondary pocketing and detail clearing
• 1/16" Endmill – fine detail machining
• 60° V-Bit – primary V-carved lettering and border details
• 30° V-Bit – fine engraving and small lettering details
This combination of tooling allows the design to achieve sharp edges, smooth recessed areas, and detailed engraving while maintaining efficient machining times.
The toolpaths included in the Carbide Create project file use feed rates and cutting parameters that are based on the settings I run on my own machine, which are slight adjustments of the default values provided within Carbide Create.
These settings are intentionally fairly conservative to provide reliable results across a wide range of hobby CNC machines and materials. However, every CNC machine behaves differently depending on rigidity, tooling, workholding, and material.
For best results, you should review and dial in feeds, speeds, and depth of cut for your specific machine and setup before machining the full project.
• Integrated American flag and Air Force seal layout
• Tapered pocket walls for improved visual depth
• V-carved lettering for crisp text definition
• Detailed center emblem optimized for CNC machining
• Clean border suitable for optional profile cutting
• Designed to carve cleanly in hardwoods with visible grain
The design is optimized around a 24-inch wide CNC carving, but it can be scaled larger or smaller depending on your machine capacity.
Recommended materials:
• Walnut
• Cherry
• Maple
• White Oak
• Other hardwoods
Material thickness recommendation:
¾" hardwood produces excellent depth and contrast.
This purchase includes a digital download containing:
• Carbide Create project file (.c2d)
• SVG vector file
• DXF vector file
These files allow you to generate toolpaths, scale the design, and adapt the project to your specific CNC machine and material.
No physical product will be shipped.
• CNC wall art
• Air Force retirement gifts
• Military veteran gifts
• Patriotic shop décor
• Custom CNC woodworking projects
You may create and sell physical items produced using this design.
You may not redistribute, resell, or share the digital design files.
Designed and tested by KTech Creations.
