Create a bold patriotic carving with this U.S. Army flag CNC design, combining the American flag with the official United States Army seal in a striking carved layout.
This design was engineered specifically for CNC routers such as Shapeoko, X-Carve, Onefinity, and other GRBL-based machines, making it ideal for military retirement gifts, veteran tributes, patriotic décor, or custom woodworking projects.
The recessed flag fields are carved with tapered pocket walls, creating strong visual depth while helping produce cleaner edges when machining hardwood. The Army seal and lettering are machined with a combination of V-bits and precision endmills, resulting in crisp engraving and sharp detail.

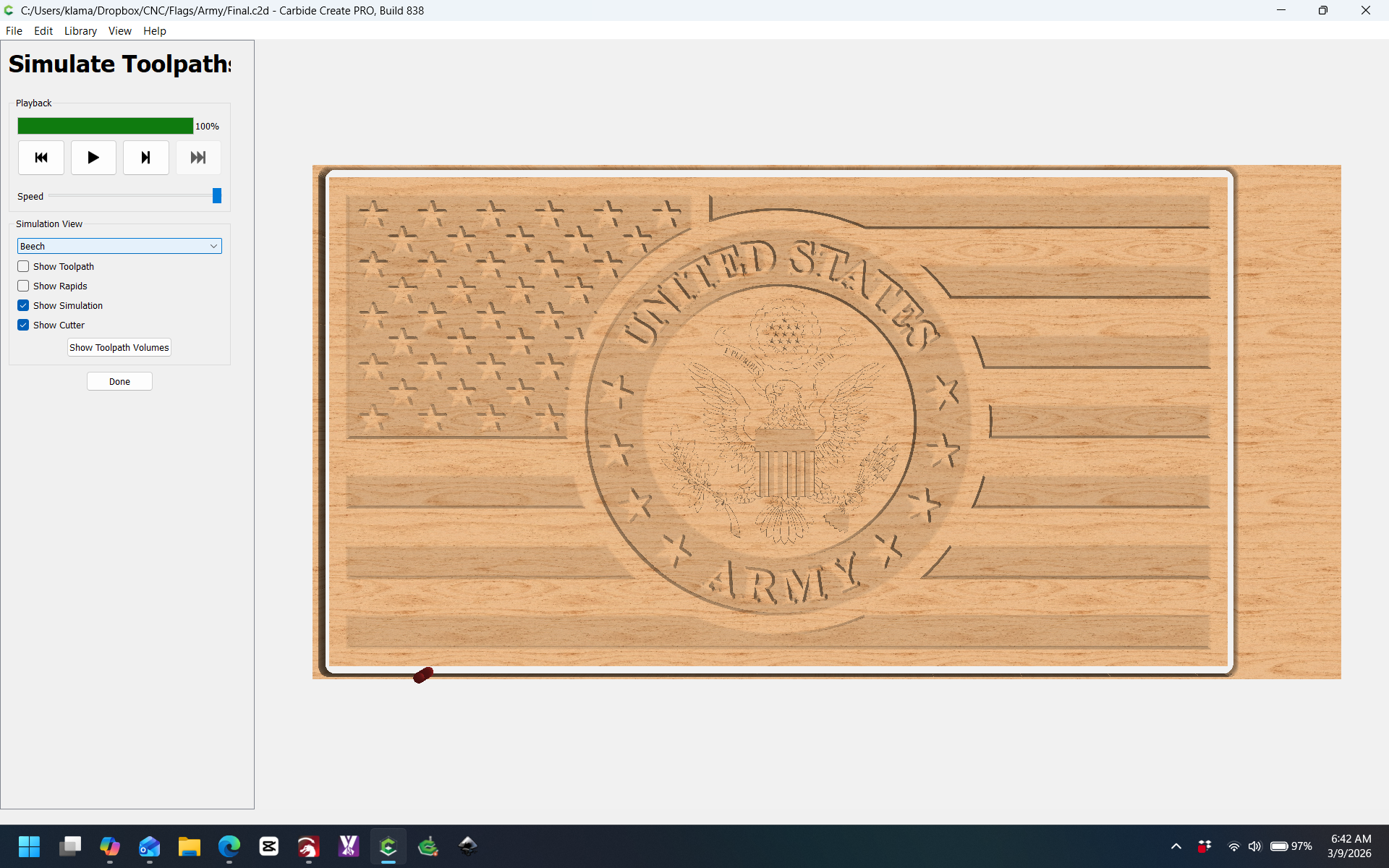

The simulation images in this listing demonstrate how the finished carving will appear when machined in hardwood using a standard CNC router. The layered carving approach produces a dimensional effect where the Army seal and lettering stand proud against recessed flag elements, creating a dramatic centerpiece suitable for offices, workshops, or patriotic home décor.
This design works with most hobby and professional CNC routers including:
• Shapeoko
• Shapeoko Pro
• X-Carve
• Onefinity
• Other GRBL-based CNC machines
Because the design includes both vector formats and a Carbide Create project file, it can easily be adapted to other CAM software.
The included Carbide Create (.c2d) project file is configured for machining with the following tooling:
• 1/4" Upcut Endmill – primary pocket clearing
• 1/8" Upcut Endmill – secondary pocketing and detail clearing
• 1/16" Endmill – fine detail machining
• 60° V-Bit – primary V-carved lettering and border details
• 30° V-Bit – fine engraving and small lettering details
This tool combination produces sharp edges, smooth recessed areas, and detailed engraving while maintaining efficient machining times.
The toolpaths included in the Carbide Create file use feed rates and cutting parameters based on the settings I run on my own machine, which are slight adjustments of the default values provided within Carbide Create.
These settings are intentionally fairly conservative to provide reliable results across a wide range of hobby CNC machines and materials. Because every CNC machine behaves differently depending on rigidity, tooling, workholding, and material, you should review and dial in feeds, speeds, and depth of cut for your specific setup before machining the full project.
• Integrated American flag and Army seal layout
• Tapered pocket walls for improved visual depth
• V-carved lettering for crisp text definition
• Detailed center emblem optimized for CNC machining
• Clean border suitable for optional profile cutting
• Designed to carve cleanly in hardwoods with visible grain
The design is optimized around a 24-inch wide CNC carving, but it can easily be scaled larger or smaller depending on your machine capacity.
Recommended materials:
• Walnut
• Cherry
• Maple
• White Oak
• Other hardwoods
Recommended thickness:
¾" hardwood produces excellent depth and contrast.
This purchase includes a digital download containing:

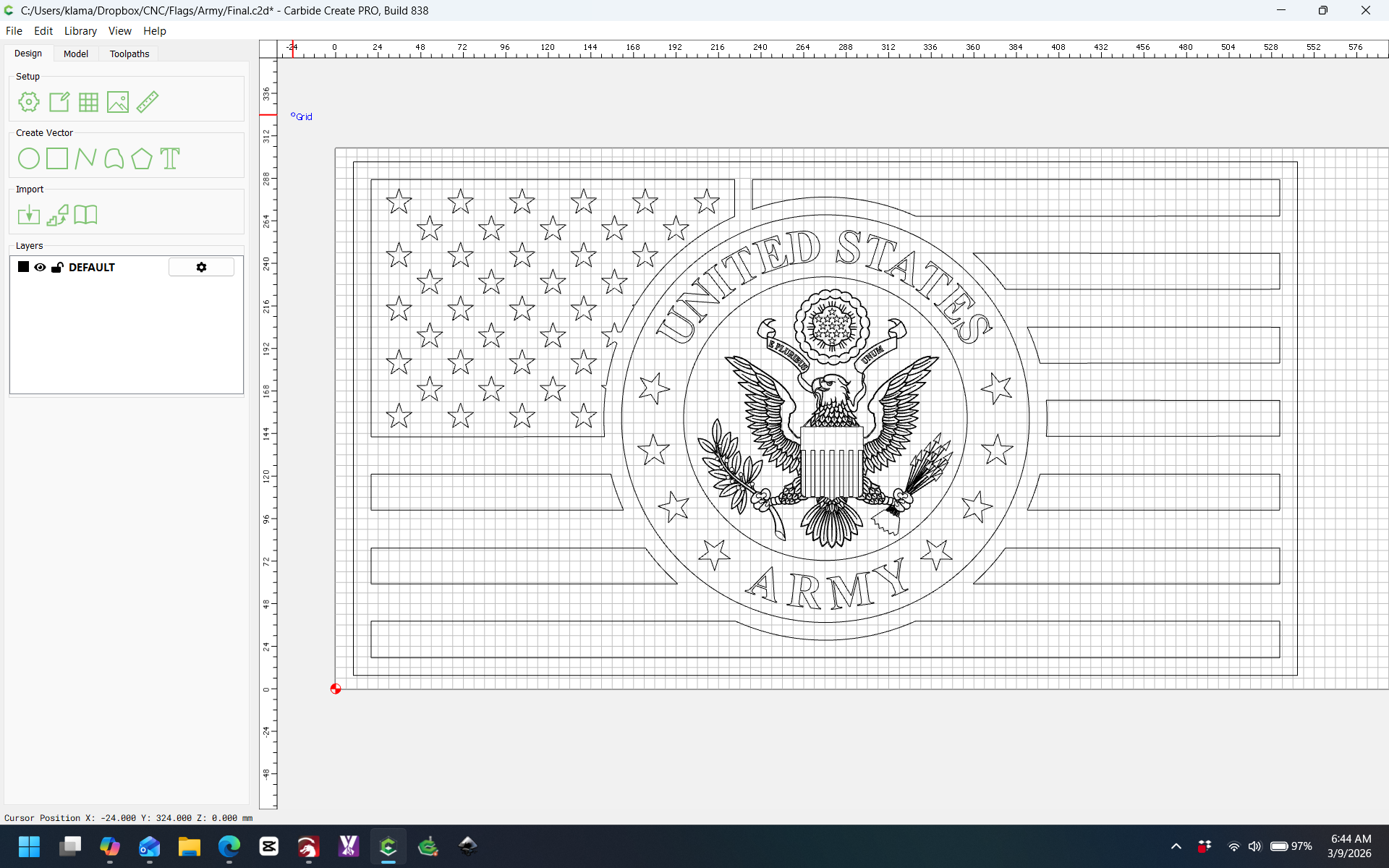

• Carbide Create project file (.c2d)
• SVG vector file
• DXF vector file
These files allow you to generate toolpaths, scale the design, and adapt the project for your specific CNC machine.
No physical product will be shipped.
• CNC wall art
• U.S. Army retirement gifts
• Veteran appreciation gifts
• Patriotic shop décor
• Custom CNC woodworking projects
You may create and sell physical items produced using this design.
You may not redistribute, resell, or share the digital design files.
Designed and tested by KTech Creations.
